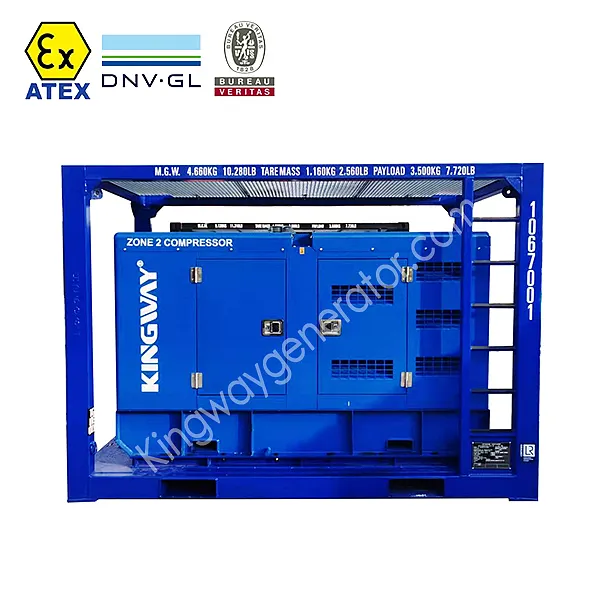

ATEX certified Zone 2 Hazardous Area Diesel Sullair Air Compressor

Place of Origin: China
Nominal Volume Capacity (m³/min /cfm): 5.2/ 185
Supply Ability: 500 sets
Payment Terms: TT , LC , Others
Tags:

185CFM Zone 2 Hazardous Area Diesel Sullair Air Compressor

Equipment: 375CFM Explosion-proof Diesel Engine Air Compressor
Directive : 2014/34/UE-ATEX
Standard: EN 60079 series / EN 1834 series
Convert to: Group II Equipment, Category 3G ( ZONE 2 IIB T3 Gc )
Original Compressor: Sullair DLQ375


Diesel driven generator sets for applications in Hazardous Area ( Zone 2 ) mounted in the DNV certified 2.7-1 Skid frame enclosure producing 185CFM Explosion-proof Air Compressor


MODEL DLQ185-EX
COMPLETE MACHINE
Explosion-proof Mark  II 3G IIB T3 Gc
Hazardous Zone ZONE 2
Certificate 《Declaration of conformity》
Nominal Volume Capacity (m³/min /cfm) 5.2/ 185
Rated Discharge Pressure (bar/psi)  6.9 /100
Working Pressure Range (bar) 4.5-6.9
Noise Sound Level (±3 dBA at 7m) 76
Machine Weight (kg/lbs) 2000 (dry)
Dimensions: L x W x H mm 2500X1800X1800
Specification of Air Supply Valve 2-NPT3/4
DIESEL ENGINE
Manufacturer KUBATO
Model V2403-M-DI-E3B
Full-load Speed (rpm) 2700
Rated Power (kW/bhp) 36.5/49
Displacement (L) 2.4
Engine Oil Capacity (L) 10
Full-load Fuel consumption (L/h) 10
Electrical System Voltage (V) 12
Rated Capacity of Battery 160Ah/ea



The working principle of Sullair air compressor is continuous rotary sweep motion. This enables the device to operate with little pulsation or flow surge. It uses two mechanical screw screws (also known as rotors) to compress the gas. It has an integrated leak free oil immersion system. Diesel Sullair air compressor is designed to achieve complete accessibility and reliability. With SSAM (abbreviation for Shutdown System and Annunciation Module) - shutdown with signal device for high compressor temperature, high engine coolant temperature, low engine oil pressure and low engine speed. 185CFM Zone 2 Hazardous Area Diesel Sullair Air Compressor we produced always match to buyers demand with low price and high quality. Please contact us for more specification.
